Chevron Conveyor Belt Wholesale Supplier
Our factory manufactures high-quality chevron rubber conveyor belts suitable for transporting materials at inclined angles, widely used in industries such as mining, cement, agriculture, construction, and bulk material handling.
With advanced manufacturing technology and strict quality control, our chevron conveyor belts deliver excellent durability, strong grip performance, and long service life.
What Is a Chevron Conveyor Belt?

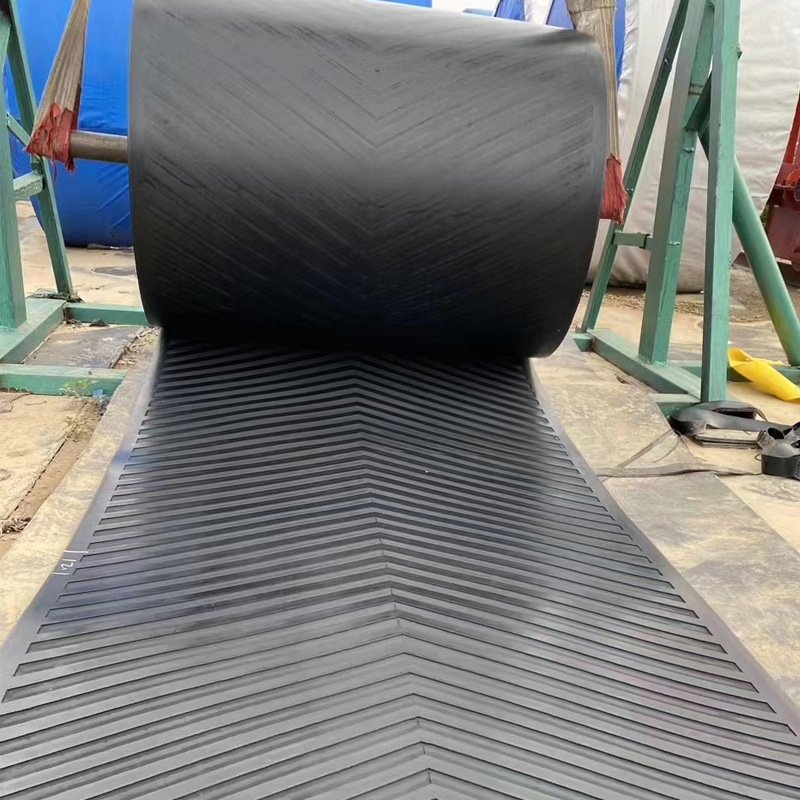

A Chevron Conveyor Belt is a rubber conveyor belt with integrally molded chevron (V-shaped) patterns on the belt surface. These patterns create additional friction and help stabilize materials during transport on inclined conveyors.
The chevron design prevents bulk materials from sliding back, allowing the conveyor system to operate efficiently at inclination angles up to 40°.
Chevron conveyor belts are commonly used in applications where materials such as sand, gravel, coal, grain, and ores need to be transported on slopes.
- Prevents material rollback
- Improves conveying efficiency
- Reduces material spillage
- Suitable for inclined conveyor systems
- Handles bulk and loose materials easily
Anti-Slip Design
The raised chevron patterns provide excellent grip to prevent material rollback on inclined conveyors.
High Conveying Efficiency
Allows materials to be transported safely at steeper angles compared with flat conveyor belts.
Strong Wear Resistance
High-quality rubber compounds ensure resistance to abrasion and heavy loads.
Integrated Pattern Structure
Chevron patterns are molded together with the belt body for improved durability.
Long Service Life
Durable materials and advanced manufacturing technology extend belt lifespan.
Suitable for Various Materials
Capable of conveying loose, bulk, or bagged materials efficiently.
Types of Chevron Conveyor Belts

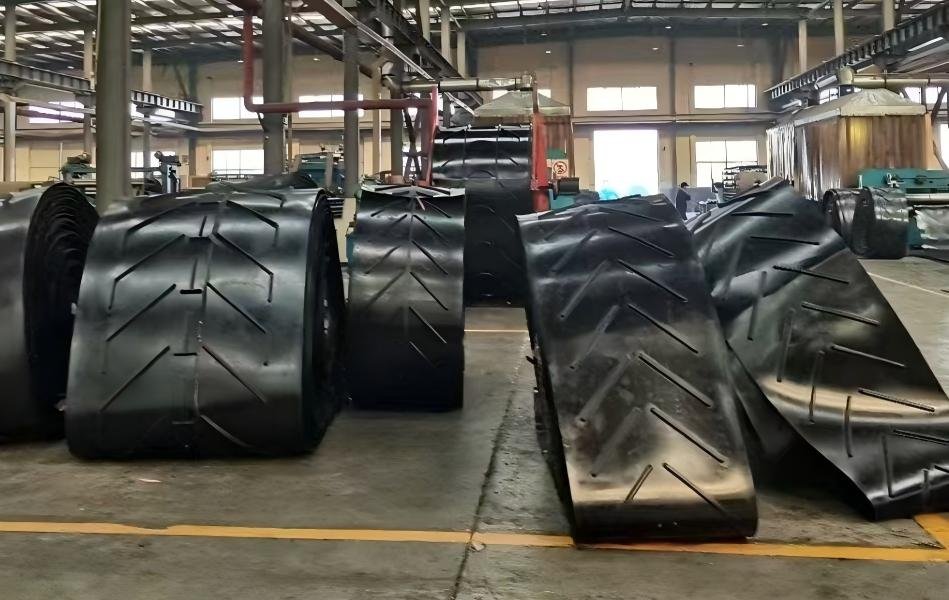

Chevron conveyor belts are available in various pattern designs depending on material characteristics and conveyor angle. Different pattern shapes such as V-pattern, U-pattern, and Y-pattern are available.
Technical Specifications
| Parameter | Specification |
|---|---|
| Belt Type | Chevron Pattern Conveyor Belt |
| Reinforcement | EP Fabric |
| Belt Width | 400 mm – 2200 mm |
| Tensile Strength | EP200 – EP630 |
| Cleat Height | 15 mm – 32 mm |
| Rubber Grade | Abrasion Resistant |
| Temperature Range | -20°C to +80°C |
| Standards | ISO / DIN / RMA |
Chevron Conveyor Belts Application
Why Choose Our Belts for Your Manufacturing Needs?
Discover how our innovative conveyor belt solutions enhance efficiency, reduce downtime, and provide reliable performance for all your industrial needs.
- Manufactured with high-quality rubber compounds for maximum wear resistance
- Reinforced with strong polyester or aramid cords for minimal elongation
- Compatible with global standards (ISO/DIN) for easy replacement
- OEM/ODM customization available (Materials, length, branding, packaging)
- Competitive factory-direct pricing with fast delivery
Quality Control
Every chevron conveyor belt produced in our factory undergoes strict quality inspection. Our strict quality control system guarantees stable performance and long service life.
-
Tensile testing Verifies the belt’s load carrying capacity.
- Adhesion Testing Ensures strong bonding between rubber layers and reinforcement fabrics.
-
Abrasion and impact resistance test for cover durability
-
Cleat Bond Strength Testing Ensures cleats remain securely attached during operation.
- Dimensional Inspection Checks belt width, thickness, and cleat alignment.
FAQ – Chevron Conveyor Belt
A chevron conveyor belt is a rubber conveyor belt with raised V-shaped patterns designed to prevent material sliding on inclined conveyors.
Chevron belts can transport materials at angles up to 40 degrees depending on the pattern height.
They are commonly used to transport coal, sand, gravel, grain, ores, and bulk materials.
Normally custom pattern chevron conveyor blet is 200 meters
Yes. Belt width, length, reinforcement materials, and rubber compounds can all be customized.
Lead time is about 20-30days according to your order quantity.
